MSR175Pro Transport Data Logger for Shock and Impact Monitoring ±10/±20/±40 g • Temperature Monitoring • Signal Filtering

Be the first to review this product

CHF822.00

excl. VAT, plus shipping costs

Delivery time: approx. 3 weeks

SKU

175B54T9AA6PRO

Data logger with acceleration and temperature sensors for transformer and heavy-load transport monitoring

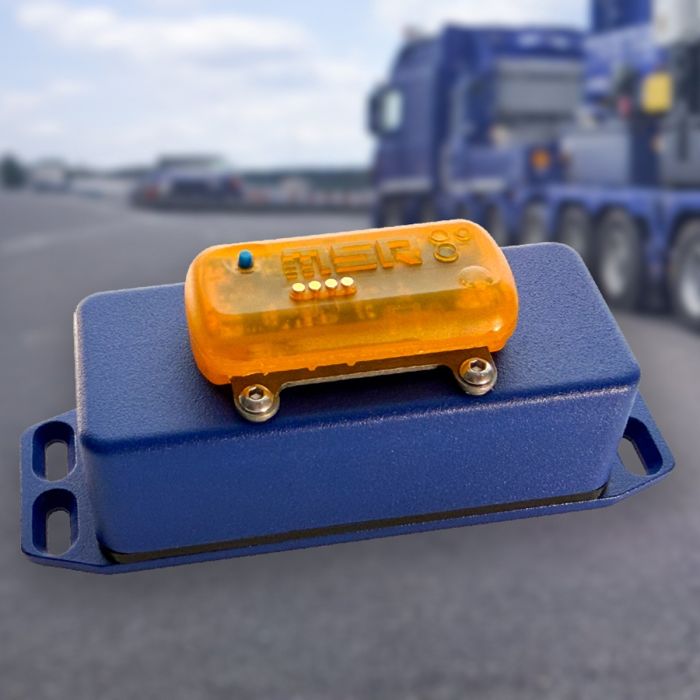

MSR175Pro data logger featuring a 3-axis acceleration sensor with measuring ranges ±10/±20/±40 g and an integrated temperature sensor

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

MSR175Pro: Robust transport data logger for shock and impact monitoring

The MSR175Pro is designed for transformer and heavy-load transport applications. It reliably records highly dynamic acceleration events with short shock impulses, as well as temperature profiles throughout the transport process.

The recorded measurement data enables a quantifiable assessment of mechanical transport stresses and provides a solid basis for damage analysis and quality verification.

Product features MSR175Pro transport data logger

Reliable shock and climate monitoring for heavy-load transport

Integrated in-housing 3-axis acceleration sensor with selectable measuring ranges of ±10 g, ±20 g or ±40 g
Adjustable measurement and recording rates: 4 Hz, 8 Hz, 16 Hz, 31 Hz, 62 Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz
Multiple shock measurement modes
Anti-aliasing and decimation filters for signal conditioning
High-pass filter for removal of static acceleration (gravitational component)
Shock thresholds adjustable in 0.5 g increments
Internal temperature sensor
Replaceable Li-SOCl₂ battery (SAFT LSH 14, 3.6 V, 5.8 Ah), battery lifetime minimum 2 years
Coloured LED for device status indication

Intelligent data storage

Shock thresholds adjustable from 0.5 g in defined increments
Memory capacity of over 2 million measurement values
Ring buffer for up to 1,000 shock events
Additional memory that can not be overwritten – for relevant shock events exceeding a second threshold
The MSR175 software package comprises MSR Dashboard for device commissioning, MSR ReportGenerator for automated report generation, and MSR ShockViewer for detailed shock event analysis.

You need more advice? Contact us!

Technical Data

Housing:	Design housing PC, encapsulated, IP65
Size & Weight:	49 x 39 x 122 mm (W x H x L), approx. 180 g
Memory capacity:	Over 2,000,000 measurement values
Shock events:	1,000 in ring buffer + 1,000 in additional memory
Medium:	Air
Colour:	Amber, blue
Key:	Start measurement / retrieve status
Power supply:	Replaceable Li-SOCI₂ battery (SAFT LSH 14, 3.6 V, 5.8 Ah), battery operating time 2 years at least.
Interface:	USB
Software package:	MSR175 Dashboard software, MSR ReportGenerator, MSR ShockViewer basic version. A fee-based MSR ShockViewer Pro Version will be available at a later stage. System requirements: Windows 7 or higher, USB port.
Operating conditions:
Temperature:	-20...+65 °C
Storage conditions:
Temperature: Humidity:	+5...+45 °C (ideal storage condition for the battery) 10...95 % relative humidity, non-condensing
Standards:	The MSR175Pro complies with EU-Directives RoHS/WEEE.

Sensors

Measured parameters	Working range	Accuracy	Measurement/Storage rate
3-axis acceleration	±10 g, ±20 g or ±40 g (-20...+65 °C)		4 Hz, 8 Hz, 16 Hz, 31 Hz, 62 Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz
Temperature	-20…+65 °C	±0.5 °C (-10…+65 °C)	10 min/30 min
Position:	To determine the position, the static acceleration is measured and stored every 10 minutes in all 3 axes.
