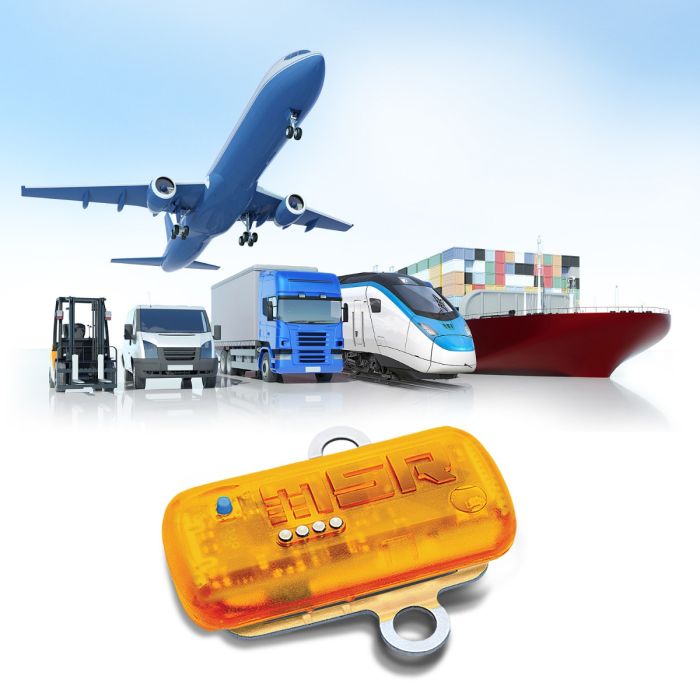

MSR175 Transportation Data Logger Shock, Temperature • Acceleration Sensors ±15 g/±200 g • Stores over 2 m Readings • LiPo-Battery 230 mAh

Rating:
93% of 100
Delivery time: 1-3 working days
SKU
175B16T9AA5

MSR175 shock transportation data logger · 2 acceleration sensors ±15 g/±200 g · 1 temperature sensor · stores over 2 million measured values

Shock transportation data logger with two internal acceleration sensors (±15 g und ±200 g) and one internal temperature sensor (-20° to +65 °C). Measuring rate up to 6400/s. Records up to 1,000 shocks at least. LiPo-battery 230 mAh.

Shock transportation data logger MSR175 with two 3-axis-acceleration sensors ±15 g and ±200 g, one temperature sensor

Product features MSR175, type 175B16T9AA5:

  • High-speed shock logger with 2 internal acceleration sensors
  • 3 shock measurement modes: either ±200 g at 6400 Hz or ±200 g at 3200 Hz or ±15 g at 1600 Hz
  • 1 internal temperature sensor included, measurement frequency/storage rate every 10 min.
  • Installed memory is capable of storing over 2 million measured values
  • Setting of limit values
  • Rechargeable 230 mAh lithium-polymer battery
  • Recording time of up to eight weeks
  • Coloured LED for status indication
  • MSR175 software package with Dashboard software for easy start-up of the data logger, MSR ReportGenerator for automatic report generation and MSR ShockViewer (basic version) for detailed analysis of shock events

Collecting data for secure transportation

The two 3-axis acceleration sensors integrated in the MSR175 shock logger have working ranges of ±15 g and ±200 g. They record shocks and jolts at a measurement frequency of up to 6,400 measurements per second. The installed memory of the logger is capable of storing over 2 million measured values, which is sufficient for more than 1,000 shocks. In addition, the MSR175 data logger measures and records temperature profiles from -20° to +65 °C. Additionally, a second type variant of this data logger is available with internal humidity, pressure and light sensors.

Easy-to-use pc software: Start the logger, evaluate the data, save costs

You can start a recording cycle by means of the user-friendly MSR175 Dashboard PC software, which allows you to configure the loggers with just a few mouse clicks. Subsequently, the measured data recorded by the MSR175 data logger can be quickly transferred to a computer via the USB port. A single click on the MSR Report Generator is sufficient to quickly call up a compact, summarised report on the measured data, for example for documentation purposes. For a detailed measured data analysis of the relevant shock events, the MSR ShockViewer analysis software, which is integrated in the MSR175 software package as a free basic version is at your disposal.

You need more advice? Contact us!

Housing: Design housing PC, encapsulated, IP67
Size & Weight: 47 x 16 x 54 mm (W x H x L), approx. 28 g

Memory capacity:

Over 2,000,000 measurement values

Medium: Air, various liquids
Colour: Amber
Key: Start measurement/retrieve status
Power supply:

LiPo-battery 230 mAh, charged via the USB connection, recording period up to 8 weeks

Options: Charging station (USB hub) for 7 MSR175 (item number B47002)
Interface: USB
Software package: MSR175 Dashboard, MSR ReportGenerator, MSR ShockViewer (basic version). System requirements: Windows 7 or higher, USB port
Operating conditions:
Temperature: -20...+65 °C
Storage conditions:
Temperature:
Humidity:
+5...+45 °C (ideal storage condition for the battery)
10...95 % relative humidity, non-condensing
Standards: The MSR175 complies with EU-Directives RoHS/WEEE.



Measured parameters Working range Accuracy (max. deviation) Measurement/Storage rate
3-axis -acceleration ±15 g and ±200 g (-20...+65 °C)

±15 g sensor
±0.15 g (0...5 g, +25 °C)
±0.3 g (5...15 g, +25 °C)


±200 g sensor
±2 g (0...15 g, +25 °C)
±5 g (15...100 g, +25 °C)
±10 g (100...200 g, +25 °C)

1600/s (±15 %)





3200/s (±15 %)

6400/s (±15 %)

Temperature -20…+65 °C ±0.5 °C (-10…+65 °C) every 10 min.

Software

Our PC software is scanned for viruses with Microsoft Defender.

  • MSR175 pc software (2022-12-01, v1.02.41, MD5: 0c8020087de1dd62cf50d62605083464)
    If you already have an older version of the MSR175 software installed on your computer, please uninstall this version first. Subsequently, you can install the latest MSR175 software.





Instruction manuals



Datasheet



Certificates



FAQ – frequently asked questions about MSR data loggers
