MSR175Pro Transport Data Logger for Shock, Impact and Climate Monitoring ±10 / ±20 / ±40 g • Temperature • Humidity • Air Pressure • Light • Signal Filtering
Data logger with acceleration, temperature, air pressure, humidity and light sensors for transformer and heavy-load transport monitoring

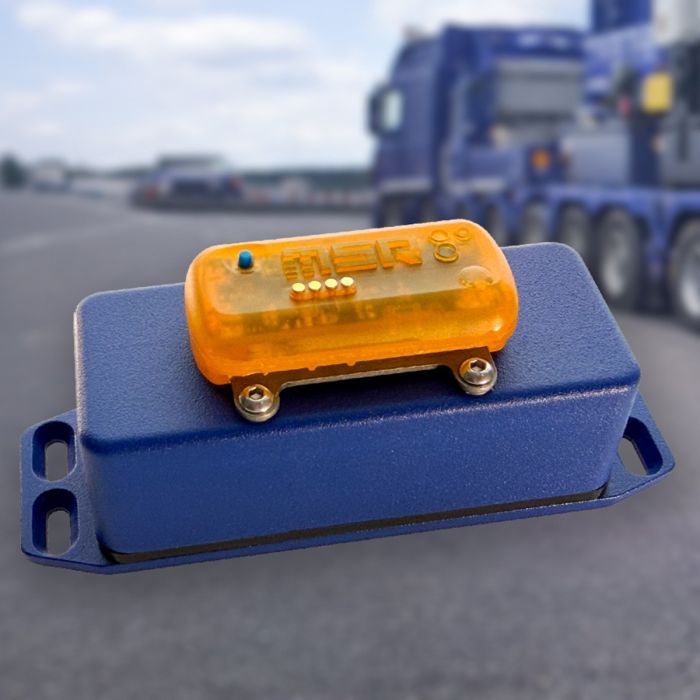

MSR175Pro data logger featuring a 3-axis acceleration sensor with measuring ranges ±10/±20/±40 g and an integrated climate sensors.
MSR175Pro: Transport data logger for monitoring shock/impact, temperature, humidity, air pressure and light
The MSR175Pro is designed for transformer and heavy-load transportation. It records highly dynamic acceleration events with short shock pulses, as well as temperature, humidity, air pressure and light profiles with high measurement reliability.
The recorded data enables quantifiable assessment of mechanical transport stresses and provides a solid basis for damage analysis and quality documentation.
Product features MSR175Pro, type 175B54T6H3P5AA6L3PRO
Reliable shock and climate monitoring for heavy-load transport
- Integrated in-housing 3-axis acceleration sensor with selectable measuring ranges of ±10 g, ±20 g or ±40 g
- Adjustable measurement and recording rates: 4 Hz, 8 Hz, 16 Hz, 31 Hz, 62 Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz
- Multiple shock measurement modes
- Anti-aliasing and decimation filters for signal conditioning
- High-pass filter for removal of static acceleration (gravitational component)
- Shock thresholds adjustable in 0.5 g increments
- One internal temperature, humidity, pressure and light sensor included
- Replaceable Li-SOCl₂ battery (SAFT LSH 14, 3.6 V, 5.8 Ah), battery lifetime minimum 2 years
- Coloured LED for device status indication
Intelligent data storage
- Shock thresholds adjustable from 0.5 g in defined increments
- Memory capacity of over 2 million measurement values
- Ring buffer for up to 1,000 shock events
- Additional memory that can not be overwritten – for relevant shock events exceeding a second threshold
- The MSR175 software package comprises MSR Dashboard for device commissioning, MSR ReportGenerator for automated report generation, and MSR ShockViewer for detailed shock event analysis.
You need more advice? Contact us!
| Housing: | Design housing PC, encapsulated, IP65 |
| Size & Weight: | 49 x 39 x 122 mm (W x H x L), approx. 180 g |
|
Memory capacity: |
Over 2,000,000 measurement values |
|
Shock events: |
1,000 in ring buffer + 1,000 in additional memory |
| Medium: | Air |
| Colour: | Amber. blue |
| Key: | Start measurement/retrieve status |
| Power supply: |
Replaceable Li-SOCI2 battery (SAFT LSH 14, 3.6 V, 5.8 Ah), battery operating time 2 years at least. |
| Interface: | USB |
| Software package: | MSR175 Dashboard software, MSR ReportGenerator, MSR ShockViewer basic version. A fee-based MSR ShockViewer Pro Version will be available at a later stage. System requirements: Windows 7 or higher, USB port |
| Operating conditions: | |
| Temperature: | -20...+65 °C |
| Storage conditions: | |
| Temperature: Humidity: |
+5...+45 °C (ideal storage condition for the battery) 10...95 % relative humidity, non-condensing |
| Standards: | The MSR175Pro complies with EU-Directives RoHS/WEEE. |
| Measured parameters | Working range | Accuracy (max. deviation) | Measurement/Storage rate |
|---|---|---|---|
| 3-axis -acceleration | ±10 g, ±20 g or ±40 g (-20…+65 °C) |
|
4 Hz, 8 Hz, 16 Hz, 31 Hz, 62 Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz
|
| Temperature | -20…+65 °C | ±0.5 °C (-10…+65 °C) | 10 min./30 min. |
| Relative humidity | 0...100 % rel. humidity -20…+65 °C |
±2 % rel. humidity (10…85 %, 0…+40 °C) ±4 % rel. humidity (85…95 %, 0…+40 °C) |
10 min./30 min. |
| Air pressure, absolute | 0…2000 mbar absolute -20…+65 °C |
±2.5 mbar (750…1100 mbar absolute, +25 °C |
10 min./30 min. |
| Light | 0…83,000 lx | max. sensitivity at 550 nm | 10 min./30 min. |
| Position | To determine the position, the static acceleration is measured and stored every 10 minutes in all 3 axes. | ||
Software
Our PC software is scanned for viruses with Microsoft Defender.
- MSR175 pc software (2026-03-06, v1.02.58, MD5: 01f0bd01210d06544ce12787599a2c32)
- MSR175 firmware update (2023-07-17, v1.32, MD5: 823e6270eee80d77b4e15aa60ca498f8)
Instructions
- Brief instructions MSR175Pro
- Video tutorials MSR175 Dashboard
- Video tutorial MSR ShockViewer
- Mounting instructions for MSR shock and vibration data loggers
Datasheets
Certificates
- ANA Cargo, Japan, confirmed electronic device list
- Cargolux, approved electronic monitoring devices
- JAL Cargo, Japan, list of approved electronic devices
