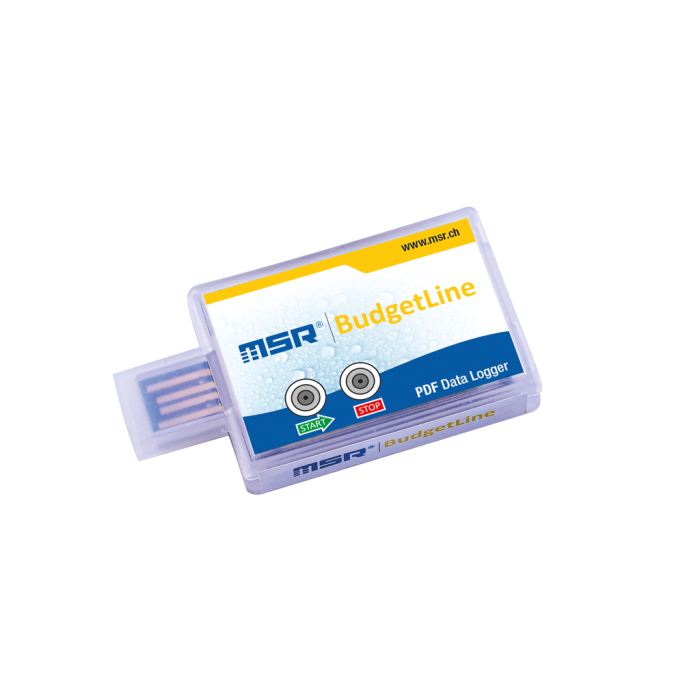

MSR63 Temperature Data Logger
Reusable Temperature Data Logger monitors Transport and Storage
Compact temperature data logger, from the MSR BudgetLine range, with direct USB connection and PDF/Excel/CSV reporting. Calibration certificate and software included. Great for limited space applications.
Temperature Data Logger for Transport and Storage
The reusable MSR63 data logger from the MSR BudgetLine reliably records and documents temperature in cold storage and warehouse environments and is ideally suited for monitoring temperature during the transport of goods.
The easy-to-use MSR63 features an integrated USB plug (plug-and-play) and can be connected directly to a PC without the need for any additional cables. The recorded measurement data can be transferred quickly and easily and processed into a report. The report can be exported either as a PDF with graphical representation or as an Excel or CSV file.
The MSR63 is DIN12830 and 21 CFR 11 compliant and conform to the EU regulations for storage and transport of cooled and frozen goods, as well as those of the US Food and Drug Administration (FDA).
Product features temperature data logger MSR63:
- Reusable data logger for mass application
- -30...+70 °C temperature measurement range
- Clear status and alarm LEDs
- Free MSR BudgetLine software to configure the data logger on the PC
- Fast data transfer by USB interface
- Report generation in PDF, Excel or CSV format
- Life of the battery approx. 1 year, battery replaceable
- 6-point-calibration certificate stored on the logger
| Housing: | PC, ABS Food Grade, IP54, not encapsulated |
| Size and Weight: | 36 x 12 x 71 mm (W x H x L), approx. 17 g |
| Resolution: | 0.1 °C |
| Memory capacity: |
16 000 values |
| Alarm: | min./max. value, indication on LED |
| Type of battery: |
3.0 V lithium battery (Panasonic CR2032) |
| Life of battery: | approx. 1 year, battery replaceable |
| Interface: | USB 2.0, A-Type |
| Further Data analysis: |
by means of the free TLogExplorer software |
| Report: |
PDF, Excel or CSV |
| Norms: | DIN12830, 21 CFR Part 11 |
| Sensor | Measurement range | Accuracy | Measuring/storage rate: |
|---|---|---|---|
| Temperature | -30…+70 °C | ±0.5 °C (-30…+70 °C) | 1 min. up to 10 days |
Software
Our PC software is scanned for viruses with Microsoft Defender.
PC requirements: Windows 10
For MSR BudgetLine data loggers with delivery date from 1.10.2021, the software is already on the logger, therefore software installation on the PC is no longer necessary.
- MSR BudgetLine pc software (2020-08-14, v2.00.00, MD5: 9fc618fe62d943b55bb29235d7d24028) (only for data loggers with delivery date before 1.10.2021)
Instruction manuals
Datasheet
Certificates
- Air Canada, data loggers approved for use
- Air Dolomiti flights, customer owned tracking devices
- ANA Cargo, Japan, confirmed electronic device list
- Austrian Airlines, customer owned tracking devices
- Discover Airlines, customer owned tracking devices
- JAL Cargo, Japan, list of approved electronic devices
- Lufthansa, Lufthansa Cargo, customer owned tracking devices
- SN Brussels, customer owned tracking devices
- Sun Express, customer owned tracking devices
