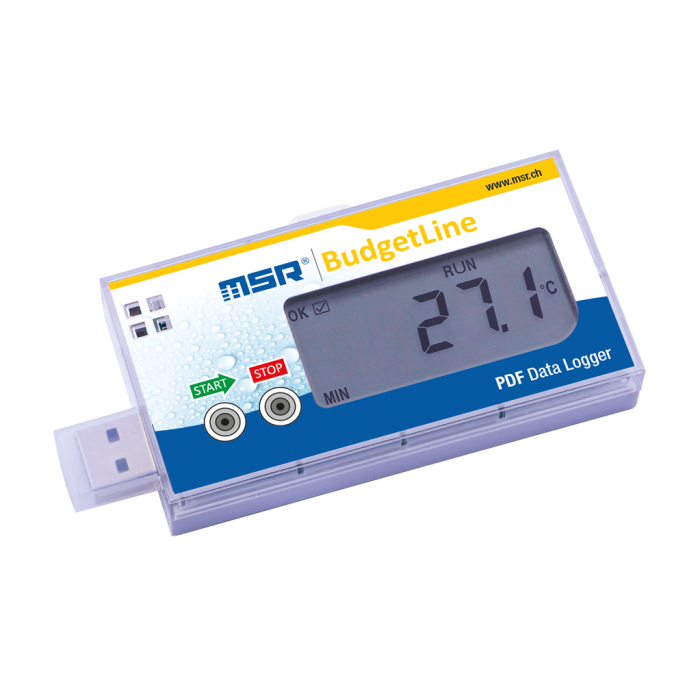

MSR83 Temperature Data Logger with Display
Reusable PDF Data Logger for Temperature, with Display
Compact temperature data logger, from the MSR BudgetLine range, with direct USB connection, Display and PDF reporting. Calibration certificate and software included.
Temperature Data Logger for Transportation and Warehouses, with Display
The reusable data logger MSR83 reliably documents the temperature conditions of sensitive goods during transport and storage, such as pharmaceuticals, chemicals and food. The logger includes a built in LCD to display measured temperature, allowing current, minimum maximum and average values to be shown from the logged data.
Recorded measured data can easily be transferred to a PC using the USB interface. When the data logger is stopped, a PDF report is automatically generated, which can be saved or printed for documentation purposes.
The MSR83 is DIN12830 and 21 CFR 11 compliant and conform to the EU regulations for storage and transport of cooled and frozen goods, as well as those of the US Food and Drug Administration (FDA).
Product features temperature data logger MSR83:
- -30...+70 °C temperature range
- life of the battery approx. 1 year, battery replaceable
- automatic PDF report generation of recorded measured data
- clear status and alarm LEDs
- 6-point-calibration certificate stored on the logger
- free MSR BudgetLine software to configure the data logger on the PC
- fast data transfer and straight forward assessment on the PC
- free TLog Explorer software for further data analysis
| Housing: | PC, ABS Food Grade, IP54, not encapsulated |
| Size and Weight: | 51 x 15 x 101 mm (W x H x L), approx. 52 g |
| Resolution: | 0.1 °C |
| Memory capacity: |
16 000 values |
| Alarm: | min./max. value, indication on LED |
| Type of battery: |
3.0 V lithium battery (Panasonic CR2032) |
| Life of battery: | approx. 1 year, battery replaceable |
| Interface: | USB 2.0, A-Type |
| Further Data analysis: |
by means of the free TLogExplorer software |
| PDF-report: |
automatic |
| Norms: | DIN12830, 21 CFR Part 11 |
| Sensor | Measurement range | Accuracy | Measuring/storage rate: |
|---|---|---|---|
| Temperature | -30…+70 °C | ±0.5 °C (-30…+70 °C) | 1 min. up to 10 days |
Software
Our PC software is scanned for viruses with Microsoft Defender.
PC requirements: Windows 10
- For MSR BudgetLine data loggers with delivery date from 1.10.2021, the software is already on the logger, therefore software installation on the PC is no longer necessary.
- MSR BudgetLine pc software (2020-08-14, v2.00.00, MD5: 9fc618fe62d943b55bb29235d7d24028) (only for data loggers with delivery date before 1.10.2021)
Instruction manuals
- Manual MSR BudgetLine data loggers with delivery date from 1.10.2021
- MSR BudgetLine data logger with delivery date before 1.10.2021 - Quick Start Guide (EN)
Datasheet
Certificates
FAQ – frequently asked questions about MSR data loggers
