MSR255 data logger with display, temperature, humidity, acceleration, pressure, light

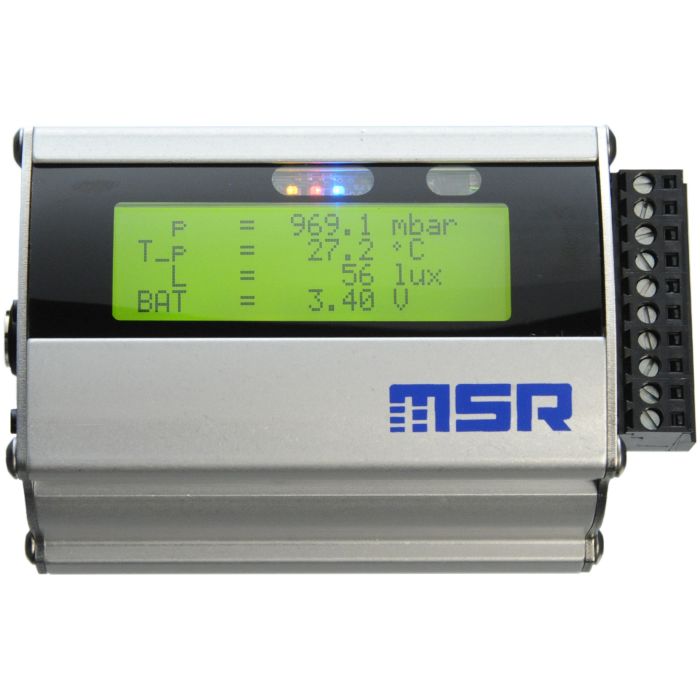

MSR255 Data Logger: Robust multi-talent with LCD screen

With up to five different sensors, four additional analogue inputs and an easy to read LCD screen the compact MSR255 offers maximum possible flexibility and user-friendliness.

5 sensors, 4 analogue inputs

The measuring tasks undertaken by the user define the way in which the MSR255 is configured: There is a choice of temperature, humidity, air pressure and light sensors (fitted internally within the case or externally on a cable) together with a sensor for measuring acceleration in all three co-ordinate axes. Acceleration values can be measured at 3200 Hz and saved at a frequency of approx. 50 Hz following digital filtration. In addition, the voltage of four further external analogue channels or sensors can also be recorded. The analogue inputs feature an alarm output, multiple output switching power supply and an input for starting and stopping data recording.

The memory capacity of the MSR255 is over 2 million measurement parameters. Thanks to its high-capacity lithium polymer battery the data logger is ideal for long-term data acquisition applications. The 4-row backlit LCD display has four individually configurable views. All acquired data can be quickly transferred to a PC or laptop via the USB interface.

Configure your own custom MSR255 variant here!

With a few clicks you are able to select your desired MSR255.

1. Basic specification and technical data for the MSR255

Housing

Technical data

Item no.

Autonomous LCD datalogger with up to 5 sensors and 4 analogue inputs

Standard IP 60
not encapsulated

Housing:	Anodised aluminium industrial case with top-hat rail snapper (TS35)
Size & weight:	78 x 62 x 38 mm, approx. 222 g

Memory capacity:	Over 2 000 000 measurement parameters

Operation:	Two keys for selecting functions and controlling data recording
Display:	Four row LCD matrix display
LED:	3 colour LED to indicate data recording, alarm and charge condition

Integrated sensors:	Selection of different sensors for temperature, relative humidity, pressure, light and 3-axis acceleration/position
Measurement rate (MR):	1 /s to every 12 h (acceleration up to 3200 /s)
Storage rate (SR):	1 /s to every 12 h (acceleration up to 50 /s)

Power supply:	Rechargeable lithium polymer battery 2300 mAh, external power supply unit
Interface:	USB (Mini-B)
PC software:	Free Setup, Reader, Viewer- & Online software (Windows 7/8/10)

Operating conditions:	Temperature -20...+65 °C
Storage conditions:	Temperature +5...+45 °C (ideal storage condition for the battery) 10...95 % relative humidity, non-condensing

Standards:	The MSR255 complies with EU-Directives RoHS / WEEE.

255B10

Error

Waterproof IP 67
encapsulated

255B11

Error

2. Select the sensors.

You can specify your MSR255 with up to five different sensors.

Measured parameter / Measuring/storage rate	Working range / Accuracy	Internal sensor	External sensor (according to cable length)
Measured parameter / Measuring/storage rate	Working range / Accuracy	Internal sensor	0.20 m	1.00 m	1.60 m
Temperature 1/s to every 12 h	external: -55...+125 °C internal: -20...+65 °C ±0.5 °C (-10...+65 °C) ±2 °C (-55...+125 °C)	Item no. T2 Error	Item no. FT2/020 Error	Item no. FT2/100 Error	Item no. FT2/160 Error
Relative humidity with integrated temperature 1/s to every 12 h	0...100 % rel. humidity external: -20...+85 °C internal: -20...+65 °C ±2 % rel. humidity (10...85 %, 0...+40 °C) ±4 % rel. humidity (85...95 %, 0...+40 °C)	Item no. H Error	Item no. FH/020 Error	Item no. FH/100 Error	Item no. FH/160 Error
Air pressure absolute, with integrated temperature 1/s to every 12 h	0...2000 mbar absolute external: -20...+85 °C internal: -20...+65 °C ±2.5 mbar (750...1100 mbar absolute, +25 °C)	Item no. P Error	Item no. FP/020 Error	Item no. FP/100 Error	Item no. FP/160 Error
	0...14 bar absolute -20...+65 °C ±50 mbar (1...10 bar abs., +25 °C)	Item no. P2 Error	Item no. FP2/020 Error	Item no. FP2/100 Error	Item no. FP2/160 Error
3-axis-acceleration Acceleration: 50/s (3200/s) Attitude: 1/s to every 12 h	±15 g -20...+65 °C ±0.15 g (0...5 g, +25 °C) ±0.25 g (5...10 g, +25 °C) ±0.45 g (10...15 g, +25 °C)	Item no. A Error	Item no. FA/020 Error	Item no. FA/100 Error	Item no. FA/160 Error
Light 1/s to every 12 h	0...65 000 lx max. sensitivity at 500 nm	Item no. L Error	Item no. FL/020 Error	Item no. FL/100 Error	Item no. FL/160 Error

3. Do you require an additional 4 analogue inputs for connecting third-party sensors?

It is possible to expand the range of possible applications for which your MSR255 can be used by specifying four analogue inputs. These additional inputs allow external sensors for a wide range of measuring tasks to be connected. If required, these third-party sensors can be powered by the logger's internal battery. The power can be automatically turned on before measurements take place with a pre-settable lead time. This allows any necessary warm-up periods for the sensors to be taken into consideration.

Analogue inputs	Inputs	Input configuration	Item no.
Including an alarm output, multiple output switching power supply and an input for starting and stopping data recording. Measurement/storage rate: 1/s to every 12 h	4 analogue inputs (resolution: 12 bit)	0...3.0 V - Standard	E3333 Error
	4 analogue inputs (resolution: 12 bit)	Select the number of inputs for the respective input configuration: (1) 0...20 mA (2) 4...20 mA (3) 0...3.0 V (4) 0.5...4.5 V / 0...5.0 V (5) 0...10.0 V / 1.0...6.0 V (6) 0...12.0 V (7) 0...24.0 V (8) 0...36.0 V (9) 0...48.0 V	Exxxx Error

Your selection:

Price in CHF, net:
Item no.:
