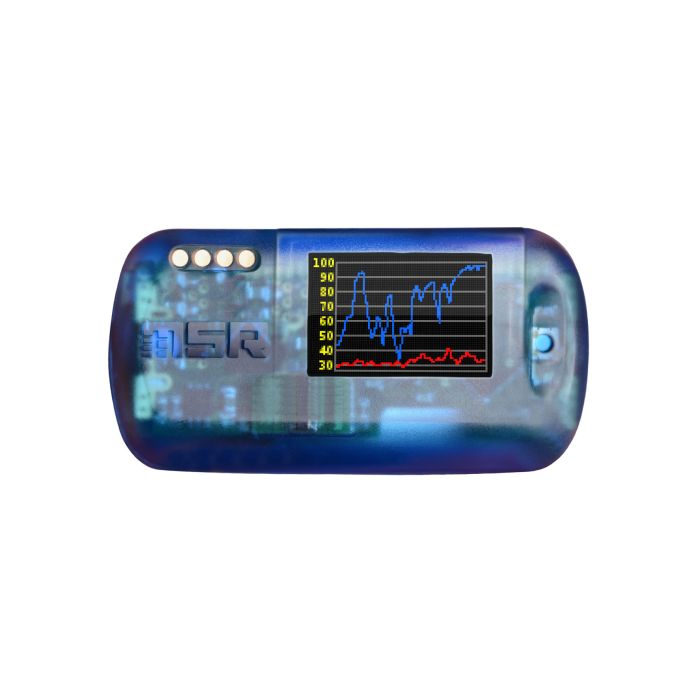

MSR145W2D WiFi Data Logger • Large Selection of Sensors e.g. Temperature, Humidity, Pressure, Acceleration • MSR FlexSensor • Stores over 1 m Readings

Delivery time: 5-10 working days
Configure your own custom data logger variant here!
SKU
MSR145W2D

MSR145W2D wireless data logger · WiFi · interchangeable MSR Flex Sensors · MSR SmartCloud

Wireless data logger (WiFi) for monitoring temperature, humidity, fluid pressure, air pressure, light, acceleration, straing gauges and more. Stores over 1 million measured values. Integration either into an existing WiFi or via an access point into a separate wireless network.



Configure your own custom MSR145W2D variant here!

With a few clicks you are able to select your desired datalogger.

  1. Select the housing and the corresponding battery.
  2. Select the configuration.
  3. Choose the FlexSensors if required.
  4. Do you require a router to send the measurement data via WiFi?
  5. The use of MSR SmartCloud.
  6. General technical data of the MSR145W2D.

1. Select the housing and the corresponding battery.

Housing Type and battery Picture Size & weight Medium Sheat
material
Item no.
Standard
IP 60
Design housing
with 230 mAh battery,
OLED display and
WiFi
35 x 17 x 57 mm
(W x H x L)
approx. 27 g
Air PC, not
encapsulated
145W2DB25
Error
Design housing
with 1000 mAh battery,
OLED display and
WiFi
35 x 25 x 57 mm
(W x H x L)
approx. 43 g
Air PC, not
encapsulated
145W2DB23
Error
Waterproof
IP 67
Design housing
with 230 mAh battery,
OLED display and
WiFi
35 x 17 x 57 mm
(W x H x L)
approx. 36 g
Air,
various liquids
PC,
encapsulated
145W2DB26
Error
Design housing
with 1000 mAh battery,
OLED display and
WiFi
35 x 25 x 57 mm
(W x H x L)
approx. 62 g
Air,
various liquids
PC,
encapsulated
145W2DB22
Error

2. Select the configuration.

You can select various internal sensors as well as up to five external sensors or connectors.

Measured parameter /
Measurement/
storage rate
Technical data Internal External (according to cable length)
0.20 m 1.00 m 1.60 m
Temperature

1/s to every 12 h
Working range:
external: -40...+125 °C
internal: -20...+65 °C

Max. deviation:
±0.1 °C (-25...+55 °C)
±0.3 °C (-40...+125 °C)
Item no. T9
Error
Item no. FT9/020
Error

Item no. FT9/100
Error

Item no. FT9/160
Error

Working range:
-55...+125 °C

Max. deviation:
±0.5 °C (10...+70 °C)
±2 °C (-55...+125 °C)
only available
externally
Item no. FT2/020
Error

Item no. FT2/100
Error

Item no. FT2/160
Error

Connector for thermal
element of Type K

(without sensor)


1/s to every 12 h
Working range:
-200...+1350 °C
only available
externally
Item no. FT3/020
Error

Item no. FT3/100
Error

Item no. FT3/160
Error

Humidity
with integrated
temperature

1/s to every 12 h
Working range:
0...100 % rel. humidity
external: -40...+125 °C
internal: -20...+65 °C

Max. deviation:
±2 % rel. humidity
(10...80 %, +25 °C)
±3 % rel. humidity
(80...100 %, +25 °C)
Item no. H3
Error
Item no. FH3/020
Error

Item no. FH3/100
Error

Item no. FH3/160
Error

Air pressure absolute,
with integrated
temperature

1/s to every 12 h
Working range:
10...2000 mbar absolute
external: -40...+85 °C
internal: -20...+65 °C

Max. deviation:
±2 mbar
(750...1100 mbar absolute,
+25 °C)
Item no. P5
Error
Item no. FP10/020
Error

Item no. FP10/100
Error

Item no. FP10/160
Error

Working range:
0...14 bar absolute
-20...+65 °C

Max. deviation:
±50 mbar
(1...10 bar abs., +25 °C)
only available
externally
Item no. FP7/020
Error

Item no. FP7/100
Error

Item no. FP7/160
Error

Fluid pressure
with integrated
temperature

1/s to every 12 h

Material in contact with
media:
  • Stainless Steel
    AISI 316L
    (DIN 1.4404 / 1.4435)
  • O-rings:
    Viton® 70° Shore
Working range:
-1000...3000 mbar rel.
-20...+85 °C

Max. deviation:
±30 mbar (1% FS)
only available
externally
Item no. FP9/020
Error

Item no. FP9/100
Error

Item no. FP9/160
Error

Working range:
0...3000 mbar absolute
-20...+85 °C

Max. deviation:
±30 mbar (1% FS)
only available
externally
Item no. FP3/020
Error

Item no. FP3/100
Error

Item no. FP3/160
Error

Working range:
0...30 bar absolute
-20...+85 °C

Max. deviation:
±0.3 bar (1% FS)
only available
externally
Item no. FP4/020
Error

Item no. FP4/100
Error

Item no. FP4/160
Error

Working range:
0...400 bar absolute
-20...+85 °C

Max. deviation:
±4 bar (1% FS)
only available
externally
Item no. FP8/020
Error

Item no. FP8/100
Error

Item no. FP8/160
Error

Working range:
0...1000 bar absolute
-20...+85 °C

Max. deviation:
±10 bar (1% FS)
only available
externally
Item no. FP12/020
Error

Item no. FP12/100
Error

Item no. FP12/160
Error

3-axis-acceleration
(static)

1/s to every 12 h
Working range:
-15...+15 g
-20...+65 °C

Max. deviation:
±0.15 g (0...5 g, +25 °C)
±0.25 g (5...10 g, +25 °C)
±0.45 g (10...15 g, +25 °C)
Item no. A
Error
Item no. FA/020
Error
Item no. FA/100
Error
Item no. FA/160
Error
Light

1/s to every 12 h
Working range:
0...83 000 lx

Max. sensitivity
at 550 nm
Item no. L3
Error
Item no. FL3/020
Error

Item no. FL3/100
Error

Item no. FL3/160
Error

Connection for
strain gauges
Characteristics:
  • full bridge
  • rated output 1 mV/V
  • bridge voltage 3 V
only available
externally
Item no. FD/020
Error

Item no. FD/100
Error

Item no. FD/160
Error

Analogue inputs
(resolution: 12 bit)

1/s to every 12 h
Input configuration:




only available
externally
Exxxx/020
Error
Exxxx/100
Error
Exxxx/160
Error
Input configuration:




only available
externally
Exxxx/020
Error
Exxxx/100
Error
Exxxx/160
Error
Control terminal Characteristics:
  • Alarm output
  • Input for starting and
    stopping data recording
  • 3 V voltage output
only available
externally
Item no. FY/020
Error
Item no. FY/100
Error
Item no. FY/160
Error
FlexConnector
(only combined with
B22 and B23 cases)
The appropriate
FlexSensors are below
presented for choice.
only available
externally
Item no. FX/020
Error
Item no. FX/100
Error
Item no. FX/160
Error

3. Choose the FlexSensors if required.

If you have selected a FlexConnector or already own an MSR145W2D data logger with a FlexConnector, you can order suitable sensors here. Please note only one interchangeable FlexSensor can be connected to the FlexConnector at a time.

Measured parameter /
Measurement/
storage rate
Technical data Item no.
Temperature

1/s to every 12 h
Working range:
-40...+125 °C

Max. deviation:
±0.1 °C (-25...+55 °C)
±0.3 °C (-40...+125 °C)
FXT9/160
Error
Humidity
with integrated
temperature

1/s to every 12 h
Working range:
0...100 % rel. humidity
-40...+125 °C

Max. deviation:
±2 % rel. humidity
(10...80 %, +25 °C)
±3 % rel. humidity
(80...100 %, +25 °C)
FXH3/160
Error
Fluid pressure
with integrated
temperature

1/s to every 12 h

Material in contact with
media:
  • Stainless Steel
    AISI 316L
    (DIN 1.4404 / 1.4435)
  • O-rings:
    Viton® 70° Shore
Working range:
-1000...3000 mbar relative
-20...+85 °C

Max. deviation:
±30 mbar (1% FS)
FXP9/160
Error
Working range:
0...3000 mbar absolute
-20...+85 °C

Max. deviation:
±30 mbar (1% FS)
FXP3/160
Error
Working range:
0...30 bar absolute
-20...+85 °C

Max. deviation:
±0.3 bar (1% FS)
FXP4/160
Error
Working range:
0...400 bar absolute
-20...+85 °C

Max. deviation:
±4 bar (1% FS)
FXP8/160
Error
Working range:
0...1000 bar absolute
-20...+85 °C

Max. deviation:
±10 bar (1% FS)
FXP12/160
Error
3-axis-acceleration
with Fast Peak
(800 Hz)

1/s to every 12 h
Working range:
-15...+15 g
-20...+65 °C

Max. deviation:
±0.15 g (0...5 g, +25 °C)
±0.25 g (5...10 g, +25 °C)
±0.45 g (10...15 g, +25 °C)
FXA4/160
Error
Light

1/s to every 12 h
Working range:
0...83 000 lx

Max. sensitivity at 550 nm
FXL3/160
Error

4. Do you require a router to send the measurement data via WiFi?

A router will be needed if your MSR145W2D device is incorporated into a separate WiFi network or if measurement data is to be sent to MSR SmartCloud via a mobile network.

Device/Service Description Item no.
WiFi router FRITZ!Box 6820 LTE WLAN access point (access to mobile network) N10130
Error
SIM card
(EU version)
  • 1 SIM card
  • Sending data via mobile network to MSR SmartCloud for the first 12 months.
N10111
Error
Extension
(EU version)
Sending data via mobile network to MSR SmartCloud for subsequent 12 month period. N10113
Error

5. The use of MSR SmartCloud.

The cloud solution managed by MSR Electronics GmbH records data measured by MSR data loggers in a database. Through online access to MSR SmartCloud you are able to gain insight into your measured data, manage it, and create alert messages. When ordering the MSR145W2D data logger you will automatically receive the access code to MSR SmartCloud.

Service Description
MSR SmartCloud Free access to MSR SmartCloud when you purchase the MSR145W2D data logger.
Data capacity up to 100 000 measurements, Data memory up to three months.

6. General technical data of the MSR145W2D.

Memory capacity: Over 1 000 000 measured values.
Key button: With the button you can activate and deactivate the
display, the WiFi-module and the data recording.
LED:
Blue:
Red:
Yellow:
Record indicator
Alarm indicator
Battery charge indicator
Power supply: Lithium-polymer battery, rechargeable via the USB connection
OLED display: High-contrast, brilliant OLED (organic light-emitting diode) colour display
to show data and graphical charts, resolution 96 x 64 pixels.
Interface: USB, WLAN (WiFi)
Operation conditions:
Temperature: -20...+65 °C
Storage conditions:
Temperature:
Humidity:
+5...+45 °C (ideal storage conditions for the battery)
10...95 % relative humidity, non-condensing
Standards: The MSR145W2D complies with EU-Directives RoHS/WEEE.

Your selection:

Price in CHF, net:
Item no.:

Product features Wireless Data Logger MSR145W2D

General functions

  • Wireless data logger (WiFi) for monitoring temperature, humidity, fluid pressure, air pressure, acceleration, strain gauges and more
  • Internal sensors and up to five external sensors (see configurator)
  • FlexConnector for exchangeable FlexSensors
  • More than 1 million measured values storage capacity in the internal memory
  • Free MSR PC software for commissioning and operation of the data logger

WLAN (WiFi) functions

  • Integration either into an existing WiFi or via an access point, by means of mobile network access where required, into a separate wireless network
  • WiFi range can be extended with a commercially available repeater
  • Data storage is guaranteed even if the transmitter fails
  • Alarm message if limit value is exceeded
  • MSR SmartCloud: retrieve, analyse and export measured data online at any time; alarm message if limit value is exceeded
  • Free MSR WLAN software for graphical visualization of the measured values transmitted over WiFi (WLAN)

Technical data of the sensors, housings and batteries

Technical details can be found on the Configurator tab.

General technical data of the WiFi Wireless Data Logger MSR145W2D

Memory capacity: Over 1 000 000 measured values.
Key button:
With the button you can activate and deactivate the display, the WiFi-module and the data recording.

LED:



Blue: Record indicator
Red: Alarm indicator
Yellow: Battery charge indicator

Power supply:

Lithium-polymer battery, rechargeable via the USB connection

OLED display:

High-contrast, brilliant OLED (organic light-emitting diode) colour display to show data and graphical charts, resolution 96 x 64 pixels.

Interface:
USB, WLAN (WiFi)
Operation conditions:
Temperature: -20...+65 °C
Storage conditions:

Temperature: +5...+45 °C (ideal storage conditions for the battery)

Humidity: 10...95 % relative humidity, non-condensing

Standards:
The MSR145W2D complies with EU-Directives RoHS/WEEE.



Software

Our PC software is scanned for viruses with Microsoft Defender.

We recommend that you keep the firmware of your data logger up to date with the latest version:

Note: For MSR145W2D data loggers with 900 mAh battery, firmware version v2.50 - v.2.54, a firmware update with the latest version is necessary to ensure battery runtime.



Instruction manuals



Datasheets



Certificates





FAQ – frequently asked questions about MSR data loggers




Where is the MSR145W2D WiFi data logger used?

The MSR145W2D is an extremely versatile wireless mini logger. It is suitable for a wide range of documentation and monitoring tasks due to its high memory capacity and its large selection of sensors.


Data logger sensors according to your needs

Measuring temperature today, acceleration tomorrow, fluid pressure the day after? The "FlexSensors" available for the MSR145W2D allow you maximum flexibility in application. They are available for the measured variables humidity, temperature, light, 3-axis acceleration and liquid pressure and can be changed as required using the intelligent "FlexConnector" plug connection and combined with a large selection of additional internal and external sensors.


Wireless monitoring of measured values in inaccessible places

WiFi wireless technology is particularly useful when measured values need to be monitored wirelessly in hard-to-reach places and a large volume of data needs to be transmitted in a short time.

The MSR145W2D can be integrated either into an existing WiFi network or into a separate wireless network via an access point. The recorded measurement data can be sent either to a local server or via a mobile radio gateway to the MSR SmartCloud. If the WiFi range is insufficient, it can be increased using a repeater.

Write Your Own Review
You're reviewing:MSR145W2D WiFi Data Logger • Large Selection of Sensors e.g. Temperature, Humidity, Pressure, Acceleration • MSR FlexSensor • Stores over 1 m Readings
Your Rating
Copyright © 2018 MSR Electronics GmbH. All rights reserved.
