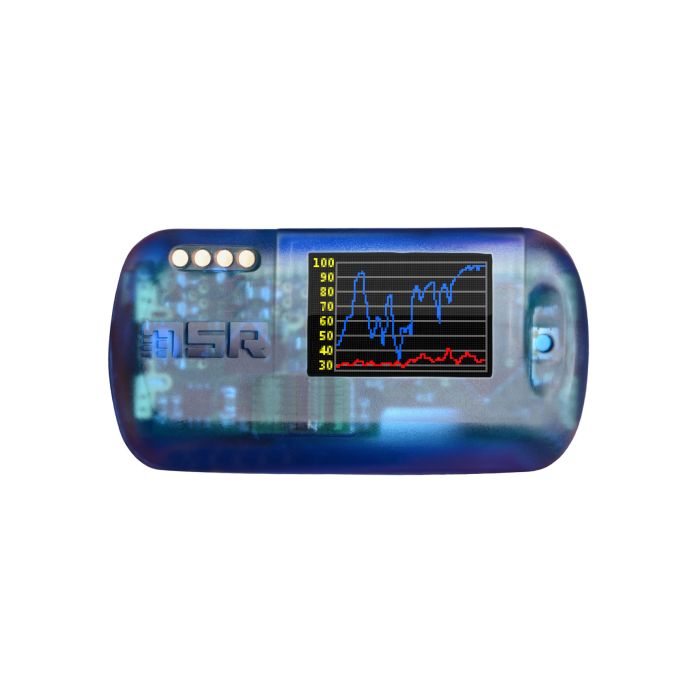

MSR145WD Bluetooth Data Logger • Large Selection of Sensors e.g. Temperature, Humidity, Pressure, Acceleration • MSR FlexSensor • Stores over 1 m Readings

Rating:

93% of 100

Delivery time: 5-10 working days

Configure your own custom data logger variant here!

SKU

MSR145WD

MSR145WD wireless data logger · Bluetooth Low Energy · interchangeable FlexSensors · MSR SmartCloud · MSR DataLogger App

Wireless data logger with Bluetooth, for temperature, humidity, air pressure, fluid pressure, acceleration, strain gauges and more. Stores over 1 million measured values. Measured values can be retrieved at any time using the MSR DataLogger App on a smartphone or tablet.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MSR Configurator

Configure your own custom MSR145WD variant here!

With a few clicks you are able to select your desired datalogger.

Select the housing and the corresponding battery.
Select the configuration.
Choose the FlexSensors if required.
Do you require a base station to transmit the measured values to the MSR SmartCloud?
The use of MSR SmartCloud.
General technical data of the MSR145WD.

1. Select the housing and the corresponding battery.

Housing	Type and battery	Size & weight	Medium	Sheat material	Item no.
Standard IP 60	Design housing with 230 mAh battery, OLED display and Bluetooth Low Energy	35 x 17 x 57 mm (W x H x L) approx. 27 g	Air	PC, not encapsulated	145WDB25 Error
Standard IP 60	Design housing with 1000 mAh battery, OLED display and Bluetooth Low Energy	35 x 25 x 57 mm (W x H x L) approx. 43 g	Air	PC, not encapsulated	145WDB23 Error
Waterproof IP 67	Design housing with 230 mAh battery, OLED display and Bluetooth Low Energy	35 x 17 x 57 mm (W x H x L) approx. 36 g	Air, various liquids	PC, encapsulated	145WDB26 Error
Waterproof IP 67	Design housing with 1000 mAh battery, OLED display and Bluetooth Low Energy	35 x 25 x 57 mm (W x H x L) approx. 62 g	Air, various liquids	PC, encapsulated	145WDB22 Error

2. Select the configuration.

You can select various internal sensors as well as up to five external sensors or connectors.

Measured parameter / Measurement/ storage rate	Technical data	Internal	External (according to cable length)
Measured parameter / Measurement/ storage rate	Technical data	Internal	0.20 m	1.00 m	1.60 m
Temperature 1/s to every 12 h	Working range: external: -40...+125 °C internal: -20...+65 °C Max. deviation: ±0.1 °C (-25...+55 °C) ±0.3 °C (-40...+125 °C)	Item no. T9 Error	Item no. FT9/020 Error	Item no. FT9/100 Error	Item no. FT9/160 Error
Temperature 1/s to every 12 h	Working range: -55...+125 °C Max. deviation: ±0.5 °C (10...+70 °C) ±2 °C (-55...+125 °C)	only available externally	Item no. FT2/020 Error	Item no. FT2/100 Error	Item no. FT2/160 Error
Connector for thermal element of Type K (without sensor) 1/s to every 12 h	Working range: -200...+1350 °C	only available externally	Item no. FT3/020 Error	Item no. FT3/100 Error	Item no. FT3/160 Error
Humidity with integrated temperature 1/s to every 12 h	Working range: 0...100 % rel. humidity external: -40...+125 °C internal: -20...+65 °C Max. deviation: ±2 % rel. humidity (10...80 %, +25 °C) ±3 % rel. humidity (80...100 %, +25 °C)	Item no. H3 Error	Item no. FH3/020 Error	Item no. FH3/100 Error	Item no. FH3/160 Error
Air pressure absolute, with integrated temperature 1/s to every 12 h	Working range: 10...2000 mbar absolute external: -40...+85 °C internal: -20...+65 °C Max. deviation: ±2 mbar (750...1100 mbar absolute, +25 °C)	Item no. P5 Error	Item no. FP10/020 Error	Item no. FP10/100 Error	Item no. FP10/160 Error
	Working range: 0...14 bar absolute -20...+65 °C Max. deviation: ±50 mbar (1...10 bar abs., +25 °C)	only available externally	Item no. FP7/020 Error	Item no. FP7/100 Error	Item no. FP7/160 Error
Fluid pressure with integrated temperature 1/s to every 12 h Material in contact with media: Stainless Steel AISI 316L (DIN 1.4404 / 1.4435) O-rings: Viton® 70° Shore	Working range: -1000...3000 mbar rel. -20...+85 °C Max. deviation: ±30 mbar (1% FS)	only available externally	Item no. FP9/020 Error	Item no. FP9/100 Error	Item no. FP9/160 Error
	Working range: 0...3000 mbar absolute -20...+85 °C Max. deviation: ±30 mbar (1% FS)	only available externally	Item no. FP3/020 Error	Item no. FP3/100 Error	Item no. FP3/160 Error
	Working range: 0...30 bar absolute -20...+85 °C Max. deviation: ±0.3 bar (1% FS)	only available externally	Item no. FP4/020 Error	Item no. FP4/100 Error	Item no. FP4/160 Error
	Working range: 0...400 bar absolute -20...+85 °C Max. deviation: ±4 bar (1% FS)	only available externally	Item no. FP8/020 Error	Item no. FP8/100 Error	Item no. FP8/160 Error
	Working range: 0...1000 bar absolute -20...+85 °C Max. deviation: ±10 bar (1% FS)	only available externally	Item no. FP12/020 Error	Item no. FP12/100 Error	Item no. FP12/160 Error
3-axis-acceleration (static) 1/s to every 12 h	Working range: -15...+15 g -20...+65 °C Max. deviation: ±0.15 g (0...5 g, +25 °C) ±0.25 g (5...10 g, +25 °C) ±0.45 g (10...15 g, +25 °C)	Item no. A Error	Item no. FA/020 Error	Item no. FA/100 Error	Item no. FA/160 Error
Light 1/s to every 12 h	Working range: 0...83 000 lx Max. sensitivity at 550 nm	Item no. L3 Error	Item no. FL3/020 Error	Item no. FL3/100 Error	Item no. FL3/160 Error
Connection for strain gauges	Characteristics: full bridge rated output 1 mV/V bridge voltage 3 V	only available externally	Item no. FD/020 Error	Item no. FD/100 Error	Item no. FD/160 Error
Analogue inputs (resolution: 12 bit) 1/s to every 12 h	Input configuration:	only available externally	Exxxx/020 Error	Exxxx/100 Error	Exxxx/160 Error
Analogue inputs (resolution: 12 bit) 1/s to every 12 h	Input configuration:	only available externally	Exxxx/020 Error	Exxxx/100 Error	Exxxx/160 Error
Control terminal	Characteristics: Alarm output Input for starting and stopping data recording 3 V voltage output	only available externally	Item no. FY/020 Error	Item no. FY/100 Error	Item no. FY/160 Error
FlexConnector (only combined with B22 and B23 cases)	The appropriate FlexSensors are below presented for choice.	only available externally	Item no. FX/020 Error	Item no. FX/100 Error	Item no. FX/160 Error

3. Choose the FlexSensors if required.

If you have selected a FlexConnector or already own an MSR145WD data logger with a FlexConnector, you can order suitable sensors here. Please note only one interchangeable FlexSensor can be connected to the FlexConnector at a time.

Measured parameter / Measurement/ storage rate	Technical data	Item no.
Temperature 1/s to every 12 h	Working range: -40...+125 °C Max. deviation: ±0.1 °C (-25...+55 °C) ±0.3 °C (-40...+125 °C)	FXT9/160 Error
Humidity with integrated temperature 1/s to every 12 h	Working range: 0...100 % rel. humidity -40...+125 °C Max. deviation: ±2 % rel. humidity (10...80 %, +25 °C) ±3 % rel. humidity (80...100 %, +25 °C)	FXH3/160 Error
Fluid pressure with integrated temperature 1/s to every 12 h Material in contact with media: Stainless Steel AISI 316L (DIN 1.4404 / 1.4435) O-rings: Viton® 70° Shore	Working range: -1000...3000 mbar relative -20...+85 °C Max. deviation: ±30 mbar (1% FS)	FXP9/160 Error
	Working range: 0...3000 mbar absolute -20...+85 °C Max. deviation: ±30 mbar (1% FS)	FXP3/160 Error
	Working range: 0...30 bar absolute -20...+85 °C Max. deviation: ±0.3 bar (1% FS)	FXP4/160 Error
	Working range: 0...400 bar absolute -20...+85 °C Max. deviation: ±4 bar (1% FS)	FXP8/160 Error
	Working range: 0...1000 bar absolute -20...+85 °C Max. deviation: ±10 bar (1% FS)	FXP12/160 Error
3-axis-acceleration with Fast Peak (800 Hz) 1/s to every 12 h	Working range: -15...+15 g -20...+65 °C Max. deviation: ±0.15 g (0...5 g, +25 °C) ±0.25 g (5...10 g, +25 °C) ±0.45 g (10...15 g, +25 °C)	FXA4/160 Error
Light 1/s to every 12 h	Working range: 0...83 000 lx Max. sensitivity at 550 nm	FXL3/160 Error

4. Do you require a base station to transmit the measured values to the MSR SmartCloud?

MSR base station	Description	Item no.
	The BLE receiver box acts a gateway which allows the automatic data transfer of several MSR145WD data loggers to the MSR SmartCloud.	N10115 Error

5. The use of MSR SmartCloud.

The cloud solution managed by MSR Electronics GmbH records data measured by MSR data loggers in a database. Through online access to MSR SmartCloud you are able to gain insight into your measured data, manage it, and create alert messages. When ordering the MSR145WD data logger you will automatically receive the access code to MSR SmartCloud.

Service	Description
MSR SmartCloud	Free access to MSR SmartCloud when you purchase the MSR145WD data logger. Data capacity up to 100 000 measurements, Data memory up to three months.

6. General technical data of the MSR145WD.

Memory capacity:	Over 1 000 000 measured values.
Key button:	With the button you can activate and deactivate the display, the BLE-module and the data recording.
LED:
Blue: Red: Yellow:	Record indicator Alarm indicator Battery charge indicator
Power supply:	Lithium-polymer battery, rechargeable via the USB connection
OLED display:	High-contrast, brilliant OLED (organic light-emitting diode) colour display to show data and graphical charts, resolution 96 x 64 pixels.
Interface:	USB, Bluetooth Low Energy
PC software:	MSR Setup, Reader, Viewer and Online software, System requirements: Windows 7 or higher, USB port
Operation conditions:
Temperature:	-20...+65 °C
Storage conditions:
Temperature: Humidity:	+5...+45 °C (ideal storage conditions for the battery) 10...95 % relative humidity, non-condensing
Standards:	The MSR145WD complies with EU-Directives RoHS/WEEE.

Your selection:

Price in CHF, net:
Item no.:

Overview

Product features Bluetooth Data Logger MSR145WD

General functions

Wireless data logger (Bluetooth Low Energy) for monitoring temperature, humidity, fluid pressure, air pressure, acceleration, strain gauges and more.
Internal sensors and up to five external sensors (see Configurator).
Flex-Connector for exchangeable sensors
More than 1 million measured values storage capacity in the internal memory
Free MSR PC software for commissioning and operation of the data logger
Command line interface CLI available on request (subject to a charge)

Bluetooth functions

Free MSR DataLogger App for mobile devices (from Android 4.4+, iPhone 4S+, iPad 3+)
BLE receiver box available as gateway
Data storage is guaranteed even if the transmitter fails
MSR SmartCloud: retrieve, analyse and export measured data online at any time; alarm message if limit value is exceeded

Technical Data

Technical data of the sensors, housings and batteries

Technical details can be found on the Configurator tab.

General technical data of the BLE Wireless Data Logger MSR145WD

Memory capacity:	Over 1 000 000 measured values.
Key button:	With the button you can activate and deactivate the display, the BLE-module and the data recording.
LED:	Blue: Record indicator Red: Alarm indicator Yellow: Battery charge indicator
Power supply:	Lithium-polymer battery, rechargeable via the USB connection.
OLED display:	High-contrast, brilliant OLED (organic light-emitting diode) colour display to show data and graphical charts, resolution 96 x 64 pixels.
Interface:	USB, Bluetooth Low Energy
Operation conditions:	Temperature: -20...+65 °C
Storage conditions:	Temperature: +5...+45 °C (ideal storage conditions for the battery) Humidity: 10...95 % relative humidity, non-condensing
Standards:	The MSR145WD complies with EU-Directives RoHS/WEEE.

Downloads

Software

Our software is scanned for viruses with Microsoft Defender.

MSR pc software (standard) (2023-05-25, v6.09.01, MD5: fd6360125328dd1707688238095543b3), Windows 7 and higher

We recommend that you keep the firmware of your data logger up to date with the latest version:

MSR145WD firmware update (2023-09-28, v2.86, MD5: 774135fea5edf8a48c0c04c806a6f4ce)
BLE (145WD) firmware update (2020-01-07, v2.05, MD5: dbe395cd949d8830578b0cfb16688ffd)

Note: For MSR145WD data loggers with 900 mAh battery, firmware version v2.50 - v.2.54, a firmware update with the latest version is necessary to ensure battery runtime.

Instruction manual

Brief instructions data logger MSR145WD

Datasheets

Certificates

FAQ – frequently asked questions about MSR data loggers (link to msr.ch)

Applications

Where is the MSR145WD Bluetooth data logger used?

The MSR145WD, equipped with Bluetooth Low Energy short-range wireless technology, is ideal for applications in which measurement data from hard-to-reach places must be monitored wirelessly.

For example, the Bluetooth logger can be used to record rotations on a working machine using an acceleration sensor or to measure and document the corresponding values in a closed (museum) display case using temperature and humidity sensors.

Bluetooth Low Energy guarantees the user immediate and location-independent data visualization. With the help of the app, current and most recently saved measured values can be called up on the smartphone at any time, alarm messages can be received via MSR SmartCloud, and data from multiple MSR145WD data loggers can be shared with a team if required.
