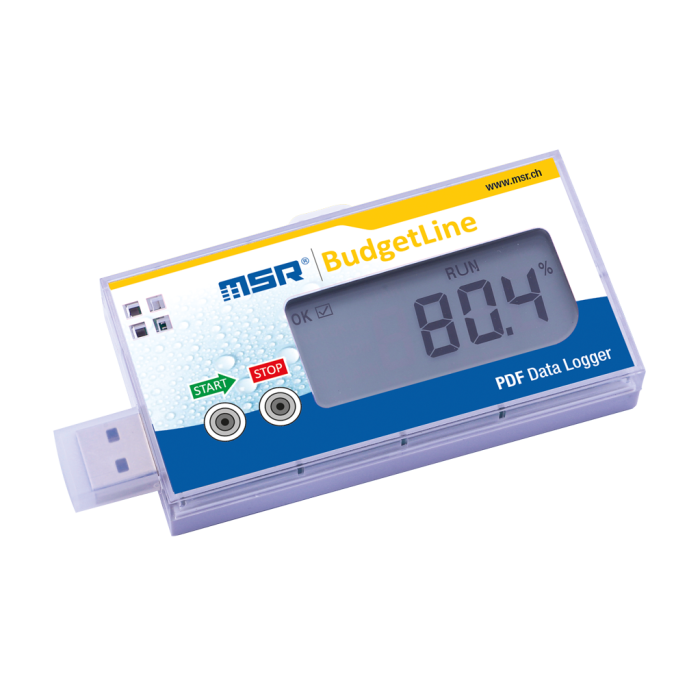

MSR84 Temperature and Humidity Data Logger with Display
Reusable Data Logger for Temperature and Humidity, with Display
Compact temperature and humidity data logger, from the MSR BudgetLine range, with direct USB connection, Display and PDF/Excel/CSV reporting. Calibration certificate and software included.
Temperature and Humidity Transportation Data Logger with Display
The MSR84 is a reusable temperature and humidity data logger with integrated USB interface. The easy-to-use logger is ideal for monitoring the environmental conditions of storage warehouses or greenhouses as well as for cold chain temperature and humidity monitoring of transports.
The logger includes a built in LCD to display measured temperature, allowing current, minimum maximum and average values to be shown from the logged data.
The recorded measurement data can be transferred quickly and easily to a PC via the USB interface. After stopping the data logger, a report of the recorded measurement data can be generated. The report can be exported either as a PDF or as an Excel or CSV file.
The MSR84 is DIN12830 and 21 CFR 11 compliant and conform to the EU regulations for storage and transport of cooled and frozen goods, as well as those of the US Food and Drug Administration (FDA).
Product features temperature & humidity data logger MSR84:
- Reusable data logger for mass application
- -30...+70 °C temperature range
- 0...98 % rel. humidity (-30...+70 °C) range
- Display indicates current values as well as minimum, maximum and average values
- Clear status and alarm LEDs
- Free MSR BudgetLine software to configure the data logger on the PC
- Fast data transfer by USB interface
- Report generation in PDF, Excel or CSV format
- Life of the battery approx. 1 year, battery replaceable
- 6-point-calibration certificate stored on the logger
| Housing: | PC, ABS Food Grade, IP54, not encapsulated |
| Size and Weight: | 51 x 15 x 101 mm (W x H x L), approx. 52 g |
| Resolution: | 0.1 °C |
| Memory capacity: |
32 000 values (16 000 per canal) |
| Alarm: | min./max. value, indication on LED |
| Type of battery: |
3.0 V lithium battery (Panasonic CR2032) |
| Life of battery: | approx. 1 year, battery replaceable |
| Interface: | USB 2.0, A-Type |
| Further Data analysis: |
by means of the free TLogExplorer software |
| Report: |
PDF, Excel or CSV |
| Norms: | DIN12830, 21 CFR Part 11 |
| Sensor | Measurement range | Accuracy | Measuring/storage rate: |
|---|---|---|---|
| Temperature | -30…+70 °C | ±0.5 °C (-30…+70 °C) | 1 min. up to 10 days |
| Humidity | 0...98 % rel. humidity (-30...+70 °C) | ±3 % rel. humidity | 1 min. up to 10 days |
Software
Our PC software is scanned for viruses with Microsoft Defender.
PC requirements: Windows 10
- For MSR BudgetLine data loggers with delivery date from 1.10.2021, the software is already on the logger, therefore software installation on the PC is no longer necessary.
- MSR BudgetLine pc software (2020-08-14, v2.00.00, MD5: 9fc618fe62d943b55bb29235d7d24028) (only for data loggers with delivery date before 1.10.2021)
Instruction manuals
Datasheets
Certificates
- Air Canada, data loggers approved for use
- Air Dolomiti flights, customer owned tracking devices
- ANA Cargo, Japan, confirmed electronic device list
- Austrian Airlines, customer owned tracking devices
- Discover Airlines, customer owned tracking devices
- JAL Cargo, Japan, list of approved electronic devices
- Lufthansa, Lufthansa Cargo, customer owned tracking devices
- SN Brussels, customer owned tracking devices
- Sun Express, customer owned tracking devices
FAQ – frequently asked questions about MSR data loggers
