NEW: MSR86 Temperature Data Logger with external Temperature Sensor -100…+150 °C

Delivery time: 5-10 working days
SKU
MSR86

Temperature Data Logger with Display and external Temperature Sensor.

Reusable PDF data logger with external temperature sensor (-100...+150 °C), cable length 1 m. Calibration certificate and software included.

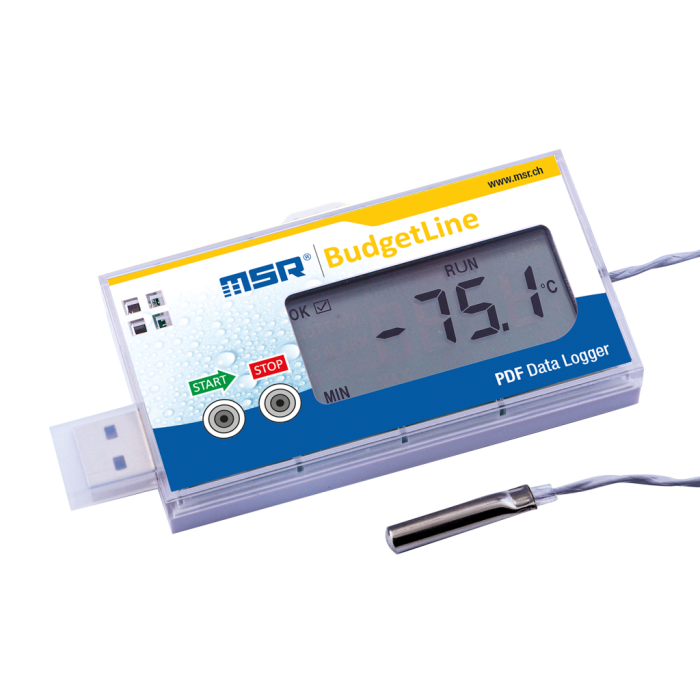

MSR86 Temperature Data Logger with Display and external Temperature Sensor

The MSR BudgetLine reusable data logger MSR86 is specifically designed to monitor extremely low temperatures of perishable products such as pharmaceuticals, enzymes, tissues, organs, vaccines, biological products, samples, clinical trials and many other sensitive products stored or transported in dry ice. It can also be used to monitor temperature conditions in ovens, autoclaves, sterilisers, etc.

The logger's compact design with robust housing and external temperature sensor has the advantage that it can be easily attached to products to monitor the current temperature condition. The multifunction LCD display shows the current reading, minimum, maximum and average values, the status of the logger, the alarm and the battery.

Using the USB interface, the recorded measurement data can be quickly transferred to a PC. Stopping the data logger automatically generates a PDF report of the recorded readings, which can be saved or filed for documentation purposes. The report includes a graphical view, a table of readings and a statistical view showing minimum, maximum, average, MKT values etc.

The temperature data logger is tamper-proof and has encrypted, password-protected records for compliance with 21 CFR Part 11. The accuracy of the logger is certified by a traceable calibration certificate available in its internal memory. The MSR86 is DIN12830 and 21 CFR Part 11 compliant and meets EU regulations for the storage and transport of refrigerated and frozen foods as well as those of the US Food and Drug Administration (FDA).

Product features temperature data logger MSR86:

  • reusable data logger with external temperature sensor (cable length 1 m)
  • -100…+150 °C temperature range
  • life of the battery approx. 1 year, battery replaceable
  • display shows current reading, minimum, maximum and average values, data logger status, alarm status and low battery level
  • clear status and alarm LEDs
  • automatic PDF report generation of recorded measured data
  • 6-point-calibration certificate stored on the logger
  • free MSR BudgetLine software to configure the data logger on the PC
  • fast data transfer and straight forward assessment on the PC
Housing: PC, ABS Food Grade, IP54, not encapsulated
Size and Weight: 51 x 15 x 101 mm (W x H x L), approx. 56 g, cable approx. 1 m with sensor, sensor Ø6 x 30
Resolution: 0.1 °C
Memory capacity:
16 000 values
Alarm: min./max. value, indication on LED
Type of battery:
3.0 V lithium battery (Panasonic CR2032)
Life of battery: approx. 1 year, battery replaceable
Interface: USB 2.0, A-Type
PDF-report:
automatic
Norms: DIN12830, 21 CFR Part 11



External Sensor, cable length 1 m Measurement range Accuracy Measuring/storage rate:
Temperature -100…+150 °C ±0.4 °C (-100…+150 °C) 1 min. up to 18 hours

Software

Our PC software is scanned for viruses with Microsoft Defender.

PC requirements: Windows 10

  • For MSR BudgetLine data loggers with delivery date from 1.10.2021, the software is already on the logger, therefore software installation on the PC is no longer necessary.



  • MSR BudgetLine pc software (2020-08-14, v2.00.00, MD5: 9fc618fe62d943b55bb29235d7d24028) (only for data loggers with delivery date before 1.10.2021)



Instruction manuals



Datasheet



Certificates



FAQ – frequently asked questions about MSR data loggers
