MSR147W2D WiFi Data Logger • plug-in Temperature and Humidity Sensors • add. internal Pressure and Acceleration Sensors • Stores over 1 m Readings

Delivery time: 5-10 working days
Configure your own custom data logger variant here!
SKU
MSR147W2D

MSR147W2D wireless data logger · WiFi · plug-in temperature and humidity sensors · internal air pressure or acceleration sensor available · MSR SmartCloud

Wireless data logger with WiFi. Ideal for remote temperature and humidity monitoring, e.g. for measuring the physiological properties of textiles. Memory capacity for over 1 m measured values. 5 connections for plug-in humidity and temperature sensors. The sensors supplied by MSR Electronics GmbH can be inserted and removed individually.

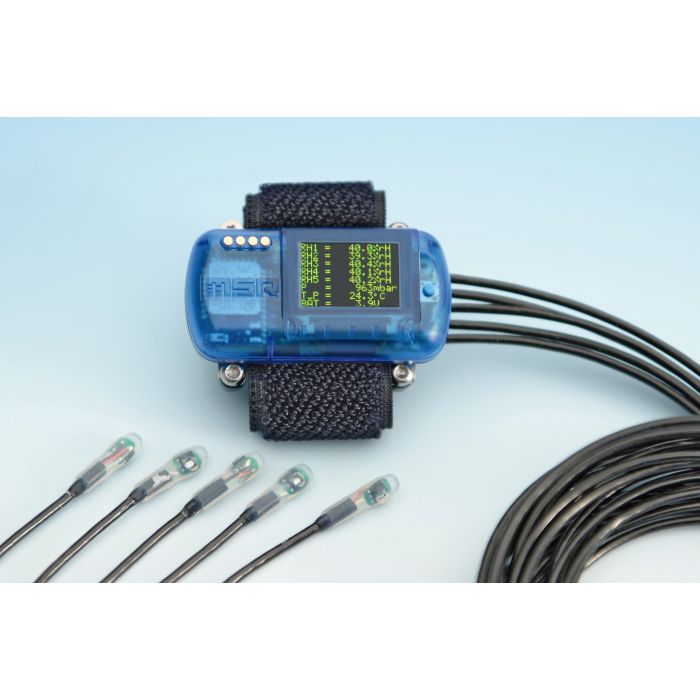

WiFi Wireless Data Logger MSR147W2D with plug-in temperature and humidity sensors

memory capacity for over 1 m measured values · 5 connections for plug-in temperature and humidity sensors · ideal for measuring the physiological properties of textiles

The easy to use MSR147W2D wireless data logger is ideal for remote monitoring of temperature and humidity. This can be of great benefit when testing the material and construction properties of functional clothing, for example. The temperature and humidity sensors, which are available in different cable lengths, can be easily attached to the body of a test person and the physiological parameters determined, such as skin temperature and moisture level can be conveniently accessed online via WiFi/WLAN.

General functions

  • Wireless data logger (WiFi) with 5 connections for pre-calibrated plug-in temperature and humidity sensors
  • Internal sensors for air pressure and 3-axis-acceleration available (see configurator)
  • More than 1 million measured values storage capacity in the internal memory
  • Lithium-polymer battery 230 mAh, rechargeable via the USB connection
  • Free MSR PC software: MSR Setup, Reader, Viewer and Online software

WLAN (WiFi) functions

  • Integration either into an existing WiFi or via an access point, by means of mobile network access where required, into a separate wireless network
  • WiFi range can be extended with a commercially available repeater
  • Data storage is guaranteed even if the transmitter fails
  • Alarm message if limit value is exceeded
  • MSR SmartCloud: retrieve, analyse and export measured data online at any time; alarm message if limit value is exceeded
  • Free MSR WLAN software for graphical visualisation of the measured values transmitted over WiFi (WLAN)

Configure your own custom MSR147W2D variant here!

With a few clicks you are able to select your desired MSR147W2D.

  1. Select the housing and the corresponding battery.
  2. Select the sensors.
  3. Do you require a router to send the measurement data via WiFi?
  4. The use of MSR SmartCloud.
  5. General technical data on the MSR147W2D.

1. Select the housing and the corresponding battery.

Housing Type and battery Picture Size & weight Sheat material Item no.
Standard
IP 60
Design housing
with 230 mAh battery,
OLED display and
WiFi
Data Logger MSR147W2D 35 x 17 x 57 mm (W x H x L)
approx. 27 g
PC, not
encapsulated
147W2DB25
Error
Waterproof
IP 67
Design housing
with 230 mAh battery,
OLED display and
WiFi
Data Logger MSR147W2D 35 x 17 x 57 mm (W x H x L)
approx. 36 g
PC,
encapsulated
147W2DB26
Error

2. Select the sensors.

Sensors measuring air pressure and 3-axis acceleration (static) are available as internal sensors. Five connections (IP 60) for plug-in, external, pre-calibrated humidity and temperature sensors in cable lengths of 0.20 m, 1.00 m or 1.60 m and a cable diameter of 2.2 mm (black cable, up to +75 °C). A cable diameter of 1.2 mm (white cable, up to +200 °C) is available on request.

Measured parameters /
Storage rate
Working range /
Accuracy
Internal
sensor
External sensor (according to cable length)
0.20 m 1.00 m 1.60 m
Temperature

1/s to every 12 h
-40...+125 °C
±0.2 °C (-10...+50 °C)
±1 °C (-40...+125 °C)
only available
externally
Art. FT5.3/020
Error

Art. FT5.3/100
Error

Art. FT5.3/160
Error

Humidity
with integrated
temperature

1/s to every 12 h
0...100 % rel. humidity
-40...+125 °C

±1.8 % rel. humidity
(10...85 %, 0...+40 °C)
±4 % rel. humidity
(85...95 %, 0...+40 °C)
only available
externally
Art. FH2.3/020
Error

Art. FH2.3/100
Error

Art. FH2.3/160
Error

Air pressure absolute,
with integrated
temperature

1/s to every 12 h
10...2000 mbar abs.
-20...+65 °C

±2 mbar
(750...1100 mbar abs.,
+25 °C)
Art. P5
Error
only available
internally
only available
internally
only available
internally
3-axis-acceleration
(static)

1/s to every 12 h
±15 g
-20...+65 °C

±0.15 g (+25 °C)
Art. A
Error
only available
internally
only available
internally
only available
internally

3. Do you require a router to send the measurement data via WiFi?

A router will be needed if your MSR147W2D device is incorporated into a separate WiFi network or if measurement data is to be sent to MSR SmartCloud via a mobile network.

Device/Service Description Item no.
WiFi router FRITZ!Box 6820 LTE WLAN access point (access to mobile network) N10130
Error
SIM card
(EU version)
  • 1 SIM card
  • Sending data via mobile network to MSR SmartCloud for the first 12 months.
N10111
Error
Extension
(EU version)
Sending data via mobile network to MSR SmartCloud for subsequent 12 month period. N10113
Error

4. The use of MSR SmartCloud.

The cloud solution managed by MSR Electronics GmbH records data measured by MSR data loggers in a database. Through online access to MSR SmartCloud you are able to gain insight into your measured data, manage it, and create alert messages. When ordering the MSR147W2D data logger you will automatically receive the access code to MSR SmartCloud.

Service Description
MSR SmartCloud Free access to MSR SmartCloud when you purchase the MSR147W2D data logger.
Data capacity up to 100,000 measurements. Data memory up to three months.

5. General technical data on the MSR147W2D.

Memory capacity: Over 1 000 000 measured values.
Key button: With the button you can activate and deactivate the display, the WiFi-module and the data recording.
LED:
blue:
red:
yellow:
Record indicator
Alarm indicator
Battery charge indicator
Power supply: Lithium-polymer battery, rechargeable via the USB connection
OLED display: High-contrast, brilliant OLED (organic light-emitting diode) colour display to show data and graphical charts, resolution 96 x 64 pixels.
Interface: USB, WLAN (WiFi)
PC software: MSR Setup, Reader, Viewer and Onlinesoftware
MSR WLAN LocalViewer
System requirements: Windows 7 or higher, USB port
Operating conditions:
Temperature: -20...+65 °C
Optimum storage conditions:
Temperature:
Humidity:
+5...+45 °C (ideal storage conditions for the battery)
10...95 % relative humidity, non-condensing
Standards: The MSR147W2D complies with EU-Directives RoHS/WEEE.

Your selection:

Price in CHF, net:
Item no.:

Product features Wireless Data Logger MSR147W2D

General functions

  • Wireless data logger (WiFi) with 5 connections for pre-calibrated plug-in temperature and humidity sensors
  • Internal sensors for air pressure and 3-axis-acceleration available (see configurator)
  • More than 1 million measured values storage capacity in the internal memory
  • Lithium-polymer battery 230 mAh, rechargeable via the USB connection
  • Free MSR PC software: MSR Setup, Reader, Viewer and Online software

WLAN (WiFi) functions

  • Integration either into an existing WiFi or via an access point, by means of mobile network access where required, into a separate wireless network
  • WiFi range can be extended with a commercially available repeater
  • Data storage is guaranteed even if the transmitter fails
  • Alarm message if limit value is exceeded
  • MSR SmartCloud: retrieve, analyse and export measured data online at any time; alarm message if limit value is exceeded
  • Free MSR WLAN software for graphical visualisation of the measured values transmitted over WiFi (WLAN)

Technical data of the sensors, housings and batteries

Technical details can be found on the Configurator tab.

General technical data of the WiFi Wireless Data Logger MSR147W2D

Memory capacity: Over 1 000 000 measured values.
Key button:
With the button you can activate and deactivate the display, the WiFi-module and the data recording.

LED:



Blue: Record indicator
Red: Alarm indicator
Yellow: Battery charge indicator

Power supply:

Lithium-polymer battery, rechargeable via the USB connection

OLED display:

High-contrast, brilliant OLED (organic light-emitting diode) colour display to show data and graphical charts, resolution 96 x 64 pixels.

Interface:
USB, WLAN (WiFi)
Operation conditions:
Temperature: -20...+65 °C
Storage conditions:

Temperature: +5...+45 °C (ideal storage conditions for the battery)

Humidity: 10...95 % relative humidity, non-condensing

Standards:
The MSR147W2D complies with EU-Directives RoHS/WEEE.
