MSR147WD Wireless Data Logger Bluetooth, for temperature, humidity

MSR147WD Wireless Data Logger with plug-in Sensors

Data Logger for measuring the physiological properties for textiles

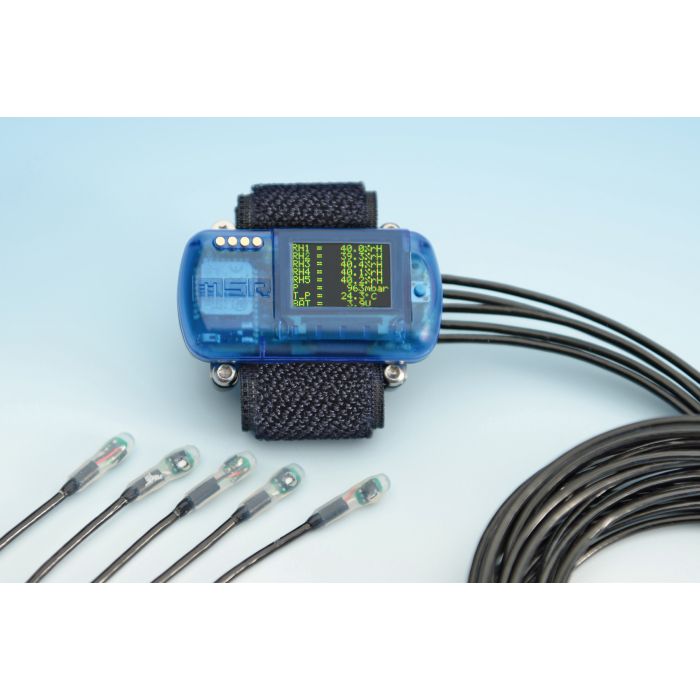

The MSR147WD, which is equipped with Bluetooth Low Energy (BLE) and a memory that is capable of storing 1 million measured values, enables you to reliably record and wirelessly monitor physiological parameters such as skin temperature and moisture level over long periods of time. The mini data logger has 5 connections for plug-in humidity and temperature sensors.

The sensors supplied by MSR Electronics GmbH can be inserted and removed individually. Due to the automatic configuration feature, the data logger instantly recognises when a sensor is inserted. The calibration data is stored in the relevant sensor. You can retrieve the measured values online at any time by means of BLE or USB. The MSR DataLogger app allows you to start and stop data recordings remotely, to read out the measured data on your smartphone and to transfer it to the MSR SmartCloud.

Technical data Bluetooth Low Energy
	Bluetooth Low Energy (Bluetooth 4.0 Smart) 2.4 GHz Radio range: approx. 10 m Communication with multiple MSR147WD data loggers possible Alarm function, transmission to MSR SmartCloud Free “MSR DataLogger” app for mobile devices (Android 4.4+, iPhone 4S+, iPad 3+) Sturdy BLE receiver box available as gateway

Technical data OLED display
	High-contrast, brilliant OLED (organic light-emitting diode) colour display to show data and graphical charts Resolution: 96 x 64 pixels Display area: 22.14 mm W x 15.42 mm H Fast response time: <10 μs Wide viewing angle >160 °

Configure your own custom MSR147WD variant here!

With a few clicks you are able to select your desired MSR147WD.

1. Select the housing.

Housing	Type and battery	Picture	Size & weight	Sheat material	Item no.
Standard IP 60	Design housing with 230 mAh battery, OLED display and Bluetooth Low Energy		35 x 17 x 57 mm (W x H x L) approx. 27 g	PC, not encapsulated	147WDB25 Error
Waterproof IP 67	Design housing with 230 mAh battery, OLED display and Bluetooth Low Energy		35 x 17 x 57 mm (W x H x L) approx. 36 g	PC, encapsulated	147WDB26 Error

2. Select the sensors.

Sensors measuring air pressure and 3-axis acceleration (static) are available as internal sensors. Five connections (IP 60) for plug-in, external, pre-calibrated humidity and temperature sensors in cable lengths of 0.20 m, 1.00 m or 1.60 m and a cable diameter of 2.2 mm (black cable, up to +75 °C). A cable diameter of 1.2 mm (white cable, up to +200 °C) is available on request.

Measured parameters / Storage rate	Working range / Accuracy	Internal sensor	External sensor (according to cable length)
Measured parameters / Storage rate	Working range / Accuracy	Internal sensor	0.20 m	1.00 m	1.60 m
Temperature 1/s to every 12 h	-40...+125 °C ±0.2 °C (-10...+50 °C) ±1 °C (-40...+125 °C)	only available externally	Art. FT5.3/020 Error	Art. FT5.3/100 Error	Art. FT5.3/160 Error
Humidity with integrated temperature 1/s to every 12 h	0...100 % rel. humidity -40...+125 °C ±1.8 % rel. humidity (10...85 %, 0...+40 °C) ±4 % rel. humidity (85...95 %, 0...+40 °C)	only available externally	Art. FH2.3/020 Error	Art. FH2.3/100 Error	Art. FH2.3/160 Error
Air pressure absolute, with integrated temperature 1/s to every 12 h	10...2000 mbar abs. -20...+65 °C ±2 mbar (750...1100 mbar abs., +25 °C)	Art. P5 Error	only available internally	only available internally	only available internally
3-axis-acceleration (static) 1/s to every 12 h	±15 g -20...+65 °C ±0.15 g (+25 °C)	Art. A Error	only available internally	only available internally	only available internally

3. Do you require a base station to transmit the measured values to the MSR SmartCloud?

MSR base station	Description	Item no.
	The BLE receiver box acts a gateway which allows the automatic data transfer of several MSR145WD data loggers to the MSR SmartCloud.	N10115 Error

4. The use of MSR SmartCloud.

The cloud solution managed by MSR Electronics GmbH records data measured by MSR data loggers in a database. Through online access to MSR SmartCloud you are able to gain insight into your measured data, manage it, and create alert messages. When ordering the MSR145W2D data logger you will automatically receive the access code to MSR SmartCloud.

Service	Description
MSR SmartCloud	Free access to MSR SmartCloud when you purchase the MSR145W2D data logger. Data capacity up to 100,000 measurements, Data memory up to three months.

5. General technical data on the MSR147WD.

Memory capacity:	Over 1 000 000 measured values.
Key:	Set bookmark or start and stop recording.
LED:
blue: red: yellow:	Record indicator Alarm indicator Battery charge indicator
Power supply:	230 mAh lithium-polymer battery The battery is charged via the USB connection.
Options:	Charging station (USB hub) for 7 MSR147WD (item number B47002)
Interface:	USB
PC software:	Free Setup, Reader, Viewer and Online software (Windows 7/8/10) to record and evaluate data. All measurement parameters can be rapidly transferred to a PC via USB connection both during the measurement operation and once the measurement task has been completed.
Operating conditions:
Temperature:	-20...+65 °C
Optimum storage conditions:
Temperature: Humidity:	+5...+45 °C (ideal storage conditions for the battery) 10...95 % relative humidity, non-condensing
Standards:	The MSR147WD complies with EU Directives RoHS/WEEE.
