MSR160 High Speed Data Logger with 4 Analogue Inputs for Voltage, Current and more • Stores over 2 m or 1 bn (SDcard) Readings

Delivery time: 5-10 working days
Configure your own custom data logger variant here!
SKU
MSR160

Data logger for voltage, current and more · 4 analogue inputs · measurement rate up to 1000/s per channel

Highly versatile mini data logger with analogue inputs for conventional sensors with analogue outputs. Additional sensors for temperature, humidity, air pressure, attitude and light available. Optional expansion slot for microSD card.

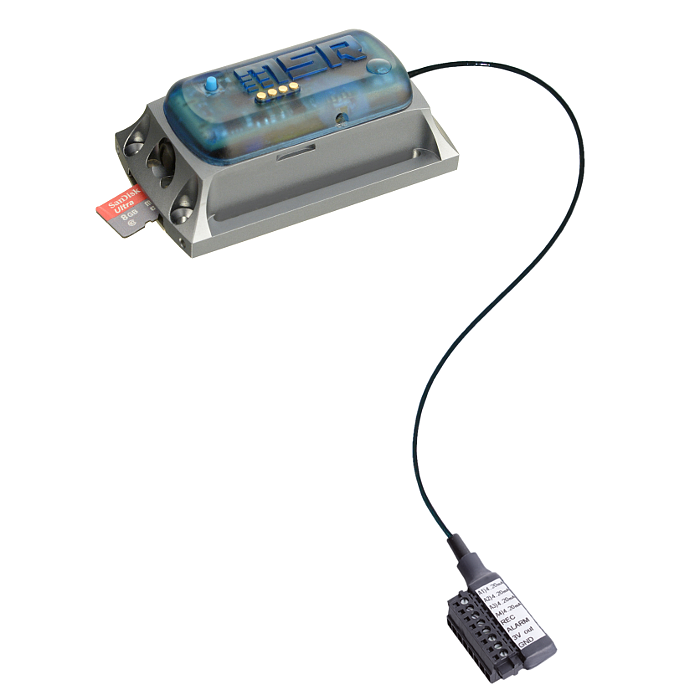

MSR160 Data Logger with 4 analogue inputs and microSD card

Four integrated analogue inputs, a high measurement rate of up to 1000/s per channel and its gigantic memory capacity, all packed into a small format are the key characteristics of the MSR160 data logger. The analogue inputs of the robust mini logger can be used for conventional sensors with analogue outputs (e.g. CO2, conductivity, pH etc). In addition, a multiple output switching power supply is also provided.

The highest performance in the smallest space!

The rugged quality data logger records over 2 000 000 measurement parameters. With the optional microSD card you can expand the memory capacity of your MSR160 to over one billion measurement parameters. All saved data can be rapidly transferred to a PC or laptop via the USB interface. The user-friendly data acquisition and analysis software is supplied free along with the data logger.

The basic specification of the MSR160 includes four analogue inputs. In addition you can also record temperature, humidity, pressure and attitude. If required, you can also connect external sensors in place of the internal ones (temperature, humidity or pressure), maximum two pieces.

Configure your own custom MSR160 variant here!

With a few clicks you are able to select your desired MSR160.

1. Basic specification and technical data for the MSR160

Housing
Technical data Item no.
Data Logger MSR160: anodised aluminium case, PC
Standard IP 60
PC, not encapsulated
Analogue inputs: 4 analogue inputs with freely selectable input configuration: 0...20 mA; 4...20 mA; 0...3.0 V; 0.5...4.5 V; 0...5.0 V; 1.0...6.0 V; 0...10.0 V; 0...12.0 V; 0...24.0 V; 0...36.0 V; 0...48.0 V; Resolution: 12 bit
Measurement/storage rate: 1000/s per channel to every 12h

Housing: Anodised aluminium case, PC
Size & weight: 39 x 23 x 72 mm, approx. 80 g
Colour: Blue, anthracite

Medium: Air, various liquids
Key: Configurable pushbutton functions
Memory capacity: Over 2 Mio. measurement parameters, expandable to over 1 bn with optional microSD card.

Power supply: Rechargeable lithium polymer battery 900 mAh
Interface: USB
PC software: Setup, Reader, Viewer and Online software (Windows 7/8/10)

160B7

Error
Data Logger MSR160: anodised aluminium case, PC
Waterproof IP 67
PC, encapsulated

160B8

Error

2. Select the input configuration.

Analogue inputs Inputs Input configuration Item no.
Screw terminal for 4 analogue inputs.

Including alarm output and input
for starting and stopping data recording.
4 analogue inputs
(resolution: 12 bit)
Select the number of inputs for the
respective input configuration:

(1)   0...20 mA
(2)   4...20 mA
(3)   0...3.0 V
(4)   0.5...4.5 V / 0...5.0 V
(5)   0...10.0 V / 1.0...6.0 V
(6)   0...12.0 V
(7)   0...24.0 V
(8)   0...36.0 V
(9)   0...48.0 V

Exxxx

3. Select the sensors.

You can select various internal as well external sensors.

Measured parameter /
Measuring/storage rate
Working range /
Accuracy
Internal
sensor
External sensor (according to cable length)
0.20 m 1.00 m 1.60 m
Temperature

1/s to every 12 h
external: -55...+125 °C
internal: -20...+65 °C

±0.5 °C (-10...+65 °C)
±2 °C (-55...+125 °C)
Item no. T2
Error
Item no. FT2/020
Error
Item no. FT2/100
Error
Item no. FT2/160
Error
Relative humidity
with integrated temperature

1/s to every 12 h
0...100 % rel. humidity
extern: -20...+85 °C
intern: -20...+65 °C

±2 % rel. humidity
(10...85 %, 0...+40 °C)
±4 % rel. Feuchte
(85...95 %, 0...+40 °C)
Item no. H3
Error
Item no. FH2/020
Error
Item no. FH2/100
Error
Item no. FH2/160
Error
Air pressure absolute,
with integrated temperature

1/s to every 12 h
0...2000 mbar absolute
extern: -20...+85 °C
intern: -20...+65 °C

±2,5 mbar
(750...1100 mbar absolute,
+25 °C)
Item no. P5
Error
Item no. FP10/020
Error
Item no. FP10/100
Error
Item no. FP10/160
Error
0...14 bar absolute
-20...+65 °C

±50 mbar
(1...10 bar abs., +25 °C)
Item no. P7
Error
Item no. FP7/020
Error
Item no. FP7/100
Error
Item no. FP7/160
Error
Attitude

1/s to every 12 h
±15 g
-20...+65 °C

±0.15 g (0...5 g, +25 °C)
±0.25 g (5...10 g, +25 °C)
±0.45 g (10...15 g, +25 °C)
Item no. A
Error
Item no. FA/020
Error
Item no. FA/100
Error
Item no. FA/160
Error
Light

1/s to every 12 h
0...65 000 lx
max. sensitivity
at 500 nm
Item no. L2
Error
Item no. FL2/020
Error
Item no. FL2/100
Error
Item no. FL2/160
Error

4. Would you like to expand the memory capacity of your MSR160 to over 1 billion measurement parameters?

Please order the expansion slot for plugging-in a standard microSD card here. Item no.
Expansion slot for microSD card (includes one formatted and ready for use ≥4GB microSD card). Please note that this expansion slot with plugged-in microSD-card only meets the protection category IP60. N10006
Error

Your selection:

Price:
Item no.:
